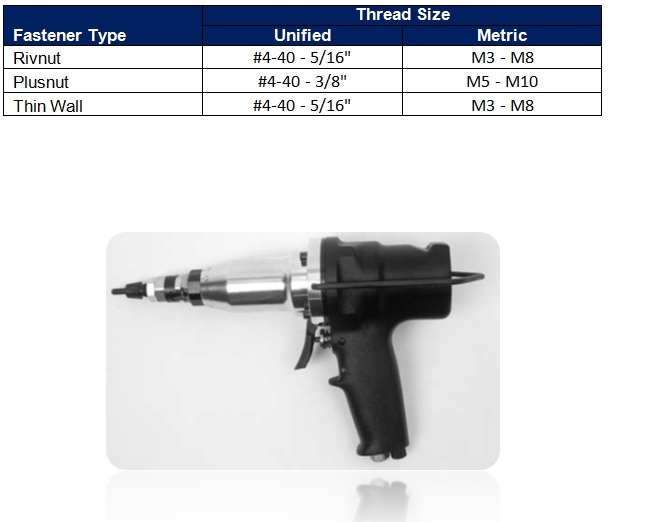

C302 P Power Tool

The C302 P is a completely pneumatic installation tool. The C302 P installs the Rivnut® and Plusnut® fasteners by pull to stroke distance control. It can also be set up for a pull to pressure upset installation. Once the stroke is set, the tool installs the fastener into a specific material thickness. The C302 P installs 15 to 20 fasteners per minute and weighs 6.1 pounds. It has a maximum stroke of 0.550 inches and a maximum pull force of 6,000 pounds using 75 PSI of clean lubricated air for operation. Fastener type and thread size capabilities (Steel Only) of the C302 P installation tool are as follows:
