Sherex Rivet Nut Hand Tools

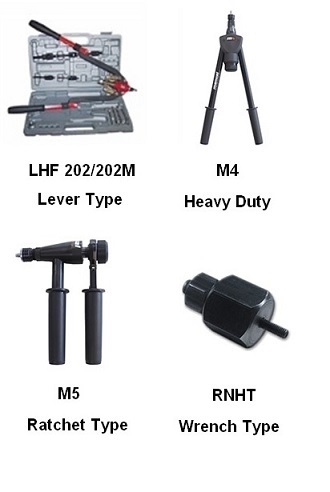

Sherex offers a variety of Rivet Nut hand tool options. The LHF 202 and M4 Heavy Duty hand tools are lever type Spin-to-Stroke installation tools. These hand tools utilize operator pressure control and feature a rear assembly knob to spin off the Rivet Nut from the application. The LHF 202 hand tool is designed for unified thread sizes and the LHF 202M hand tool is designed for metric threads. The M5 hand tool is a ratchet style tool. These hand tools are ideal for small production runs and prototype development. The RNHT Wrench Type stroke tool utilizes a simple wrench to apply a linear pull stroke to install the Rivet Nut. The wrench type tools are used primarily for low volume field installations or product prototypes. Thread size capabilities for the rivet nut hand tools are as follows:
Hand Tool | Tool Type | Thread Size Unified Metric |
LF 202 | Lever | 6-32 to 1/4-28 | - |
LF 202M | Lever | - | M4 to M6 |
M4 | Lever | 1/4-20 to 1/2-20 | M6 to M12 |
M5 | Rachet | 6-32 to 3/8-24 | M4 to M10 |
RNHT | Wrench | 6-32 to 3/8-16 | M3 to M10 |
