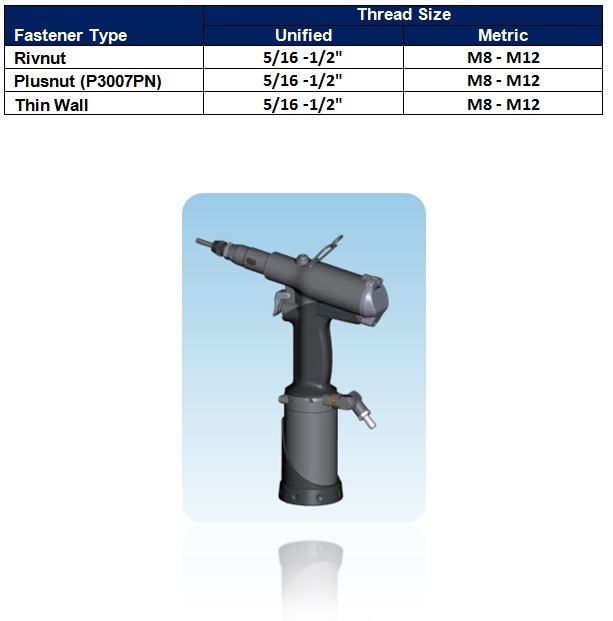

P3007 and P3007PN Power Tools The P3007 is a pneumatic/hydraulic installation tool. The P3007 tool installs the Rivnut® and Rivstud® fasteners by spin-pull to pressure technology. The P3007 operates in the same manner as the P2007 and the P1007 with greater pull force. The P3007PN tool is designed to install the Plusnut®. A single stage trigger controls the complete installation sequence and an automatic timed reverse spin and stop feature insures maximum installation speed. The P3007 installs 20 to 30 pieces per minute. The tool weighs 7.5 pounds, has a maximum stroke of 0.275 inches and a pull force of 7800 pounds. It requires 80 PSI of clean dry air for operation. Fastener type and thread size capabilities (Steel Only) of the P3007 installation tool are as follows:
|
|
