Product Offering

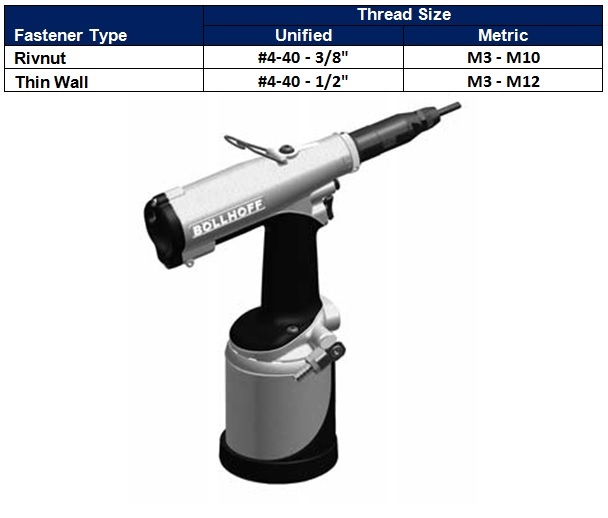

P2005 Power Tool

The P2005 is a pneumatic/hydraulic installation tool. The P2005 installs the Rivnut® and Rivstud® fasteners by spin-pull to stroke control. The stroke of the tool is set to install the fastener in a specific thickness. The P2005 installs the fastener and automatically reverses. A single stage trigger controls the complete installation sequence and installs 20 to 30 pieces per minute. The tool weighs 4.5 pounds, has a maximum stroke of 0.275 inches and a pull force of 4700 pounds. It requires 80 PSI of clean dry air for operation. Fastener type and thread size capabilities (Steel Only) of the P2005 installation tool are as follows:
