Thin Wall Rivnut® (TW) Thin Wall Rivnut® (TW)
Data Sheets »

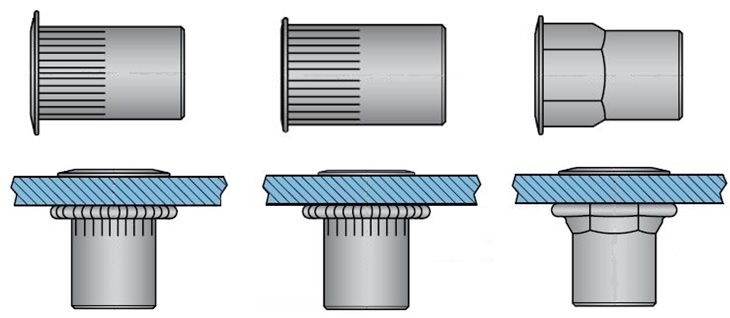

The Thin Wall Rivnut® (TW) is designed to be a lower cost alternative for applications with reduced load requirements. The TW Rivnut® can be installed with both the spin-spin and spin-pull type tools. The ribbed vertical grooves on the top of the shank increase torque resistance. The TW line of Rivnuts are offered with a standard head, a low profile, minimized head or a half hex body. The low profile, minimized head version has a minimal head height that provides a nearly flush mount. The half hex body version is designed for applications where higher resistance to spinout is required. They are available in aluminum, steel or stainless steel. Unified thread sizes of 6-32, 8-32, 10-32, 10-24,1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24 and,1/2-13 are offered. Metric thread sizes of M4, M5, M6, M8, M10 and M12 are also available. The Thin Wall Rivnut® installs in a wide variety of grip range tolerances from 0.020 to 0.350 inches and from 0.50 to 8.9 millimeters.
Bollhoff offers the Thin Wall Rivnut®. Liberty Engineering is an authorized Bollhoff distributor.
